First-Time User Guide
Get Started with SmartPulser
Your complete guide to setting up, connecting, and using your SmartPulser system for the very first time.
Includes S.Mat · S.Bed · S.Wrap⚠️ Important: SmartPulser is a wellness product only. It is not intended to diagnose, treat, cure, or prevent any disease.
What’s in the Box
Confirm your package includes the following items. Contents may vary depending on your order.
🖥️ Control Unit
- Pre-installed firmware
- Touchscreen interface
- Universal power supply
- USB stick for updates
🧲 Applicators
- S.Mat — full-body mat
- S.Bed — mattress applicator
- S.Wrap — local area wrap
- As per your order
📖 Documentation
- Quickstart guide
- Full manual online
- Multi-language support
Setting Up in 4 Simple Steps
Position Your Applicator
S.Mat on the floor or couch · S.Bed on your mattress with cable at the headboard · S.Wrap around your target body area
Connect to the Control Unit

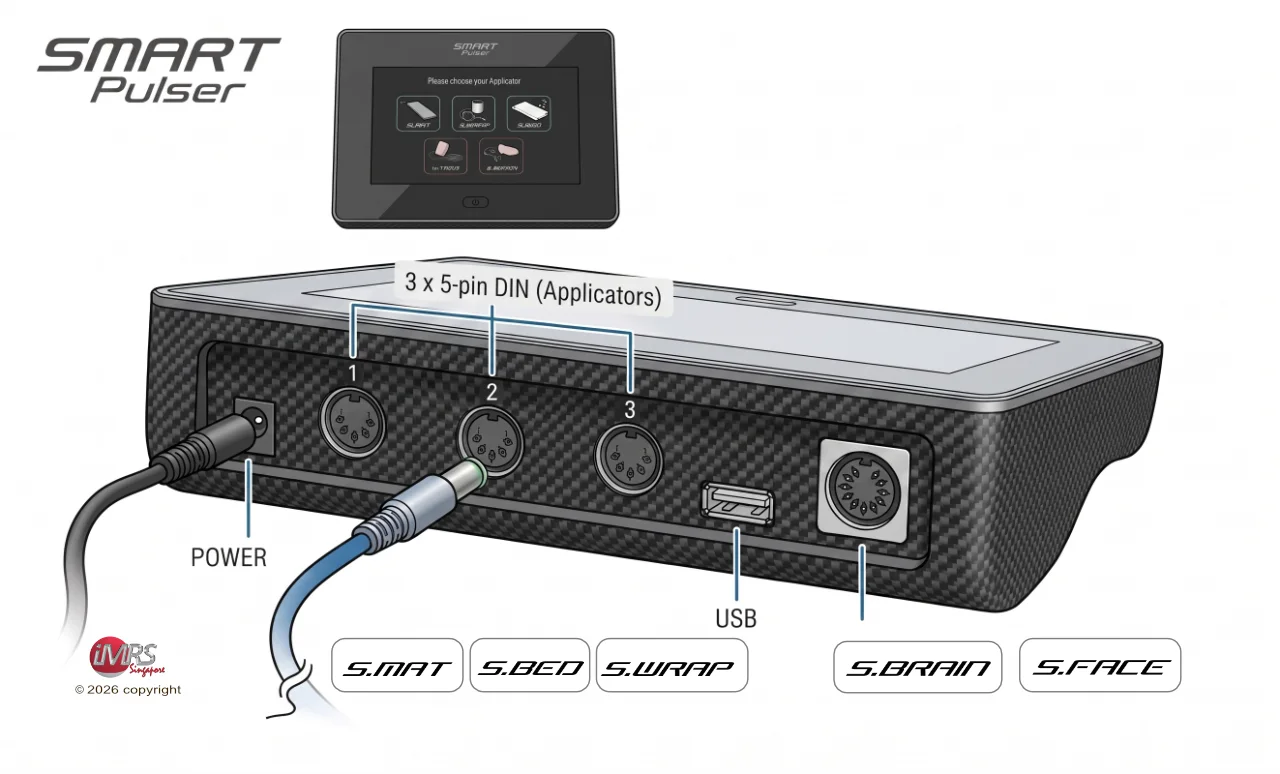

Insert the applicator plug into the socket on the back of the control unit — logo facing upward. The system detects it automatically.
Power On & Configure
Hold the power button until the screen lights up. On first use: set your language, set the system time, review safety information, then press CONTINUE.
Choose Your Mode & Start

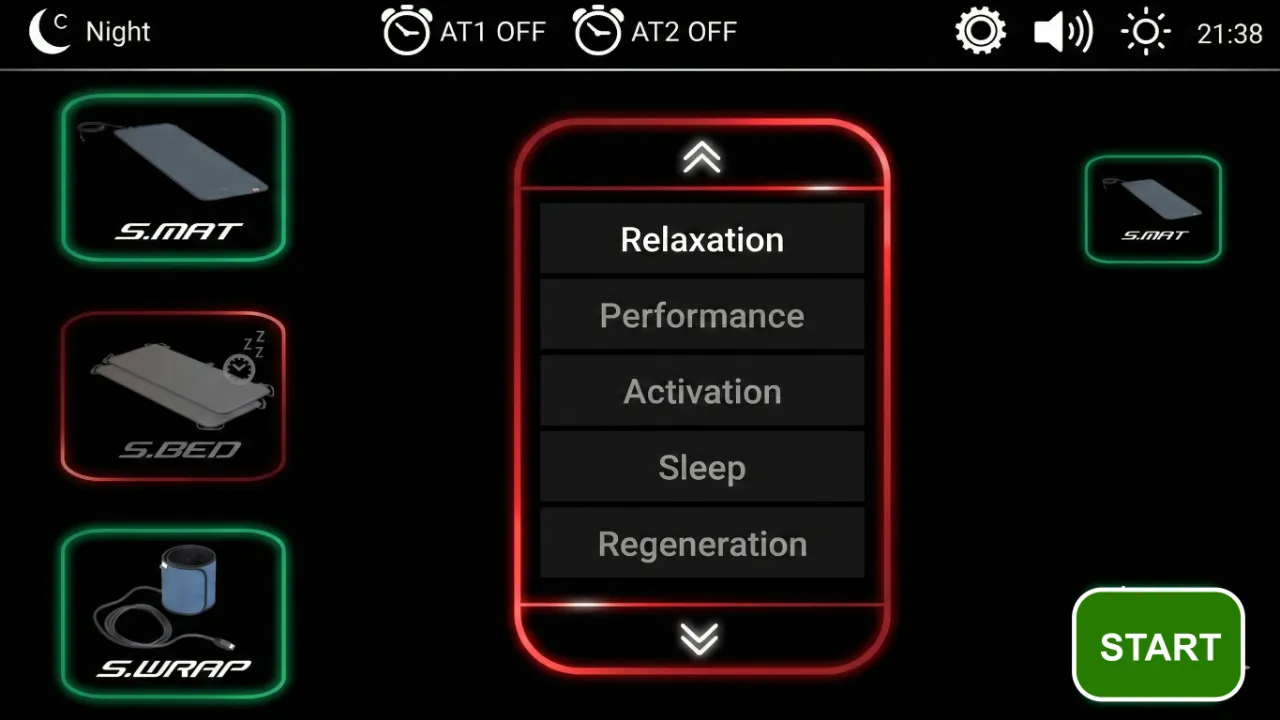

Select Simply for guided one-touch programs, or Individually for full manual control. Tap your applicator icon and press START.

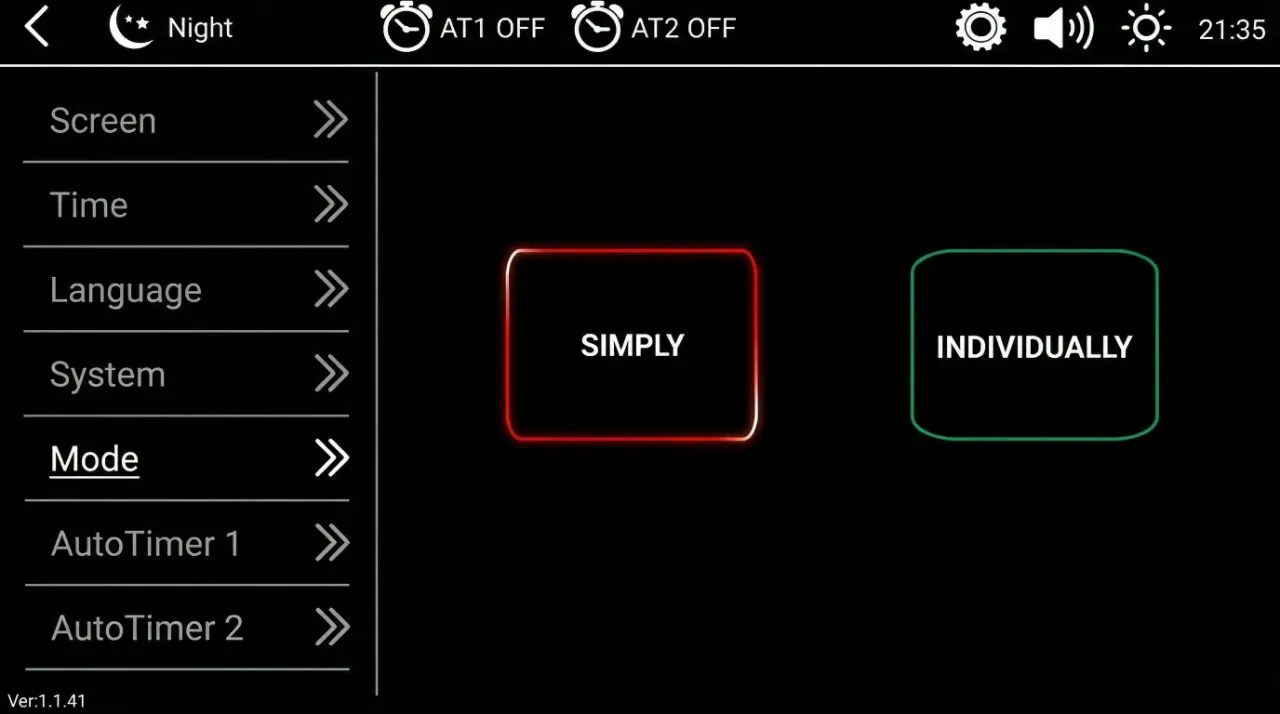

Two Modes to Suit Every User
| Mode | Best For | What You Get |
|---|---|---|
| Simply | Beginners, seniors, one-touch ease | 5 optimised Fast Start programs |
| Individually | Experienced users, full control | Custom intensity (sens–400) & duration |
Fast Start Programs (Simply Mode)
| Program | Duration | Best For |
|---|---|---|
| Sleep | 24 min | Winding down before bed |
| Relaxation | 24 min | Stress relief and calm |
| Performance | 12 min | Pre-activity preparation |
| Activation | 12 min | Morning or energising sessions |
| Revitalization | 24 min | Gentle recovery and restoration |
S.Mat — Full-Body Portable Mat

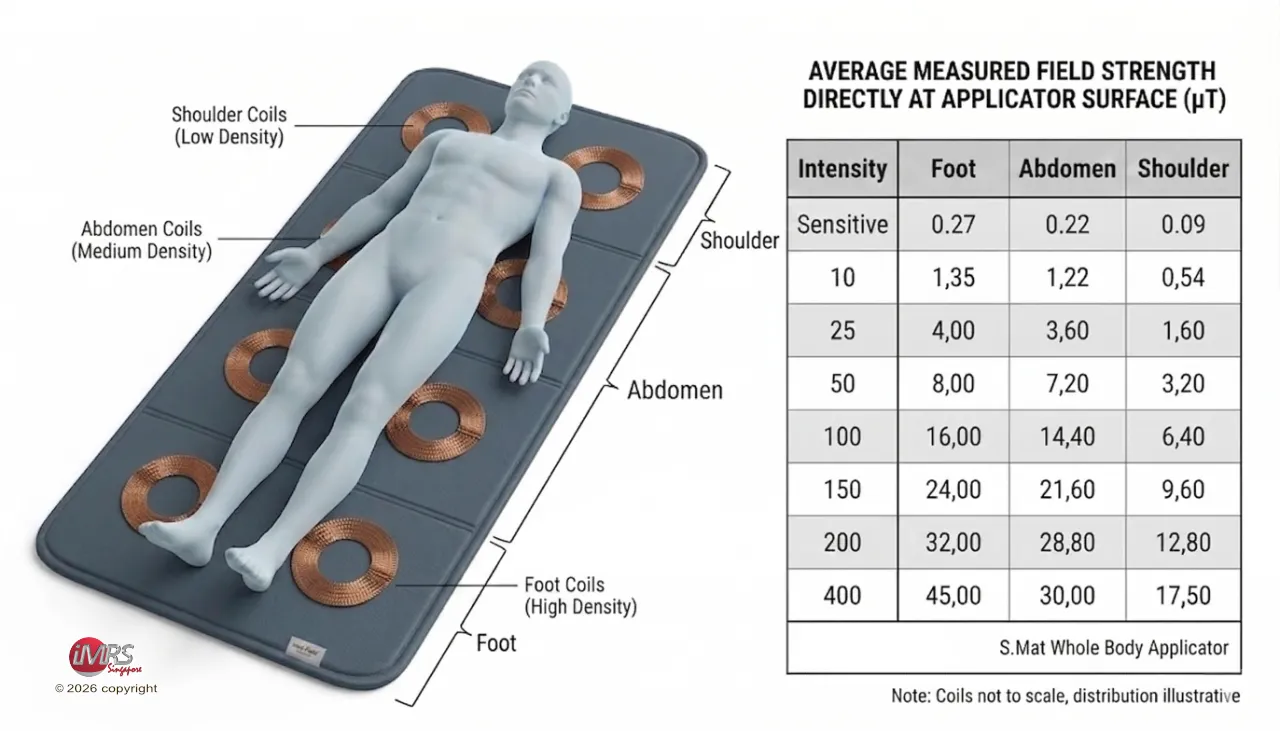

The S.Mat is a full-body applicator for lying-down use. It contains four pairs of copper coils arranged from head to foot, with the lowest intensity at the head and the highest at the foot — providing gentle, graduated whole-body field exposure.
📐 Specifications
- 4 pairs of insulated copper coils
- Artificial leather cover (100% PVC)
- Dimensions: 180 × 58 × 2 cm
- Cable length: 1.77 m
- Max field strength: 45 µT
✅ Usage Tips
- Lie with cable end at head position
- Use on floor, couch, or treatment bed
- Fold along seams only — never roll
- Recommended: 8–24 min per session
- Field safe at ~1.5 m distance
🧹 Cleaning
- Mild soap and water solution
- Use a soft white cloth
- No acetone or xylene products
- No MEK-based solvents
- No abrasive scrubbing
S.Bed — Mattress Applicator
The S.Bed is designed to sit on top of your mattress, so you can benefit from a session while resting or sleeping. Corner fastening tabs keep it in place, and two units can be joined together to cover a full double bed.
📐 Specifications
- 4 pairs of insulated copper coils
- Front: polyester mesh | Back: cotton
- Dimensions: 190 × 78 × 1 cm
- Cable: 1.7 m + 0.2 m connecting cable
- Max field strength: 45 µT
✅ Usage Tips
- Cable end faces the headboard
- Secure with corner fastening tabs
- 2 units joinable for double bed use
- Fold for storage — never roll
- Recommended: 8–24 min per session
🧹 Cleaning
- Slightly damp white cotton cloth only
- Do not use chemical cleaners
- No soaking or wringing
- Air dry flat after cleaning
S.Wrap — Local Area Applicator
The S.Wrap is a flexible, wrapable applicator for targeted use on specific body parts. It can be applied to the knee, foot, hand, shoulder, back, or any other localised area, with sessions running up to 60 minutes.
📐 Specifications
- 1 pair of insulated copper coils
- 100% Nylon cover
- Dimensions: 66 × 14 × 0.5 cm
- Cable length: 1.77 m
- Max field strength: 70 µT
✅ Usage Tips
- Wrap around knee, foot, shoulder etc.
- Use the extension strap if needed
- Do not fully cover — air must circulate
- Low / Medium / High in Simply mode
- 8–60 min sessions for local use
🧹 Cleaning
- Mild soap solution with soft cloth
- Remove stains promptly
- No harsh or chemical cleaners
- Air dry before storing
During Your Session
The active session screen shows your remaining time, current intensity level, and volume settings. You are in full control at all times.
| Button | Function |
|---|---|
| PAUSE | Temporarily stops the session — press again to continue |
| STOP | Ends the session immediately |

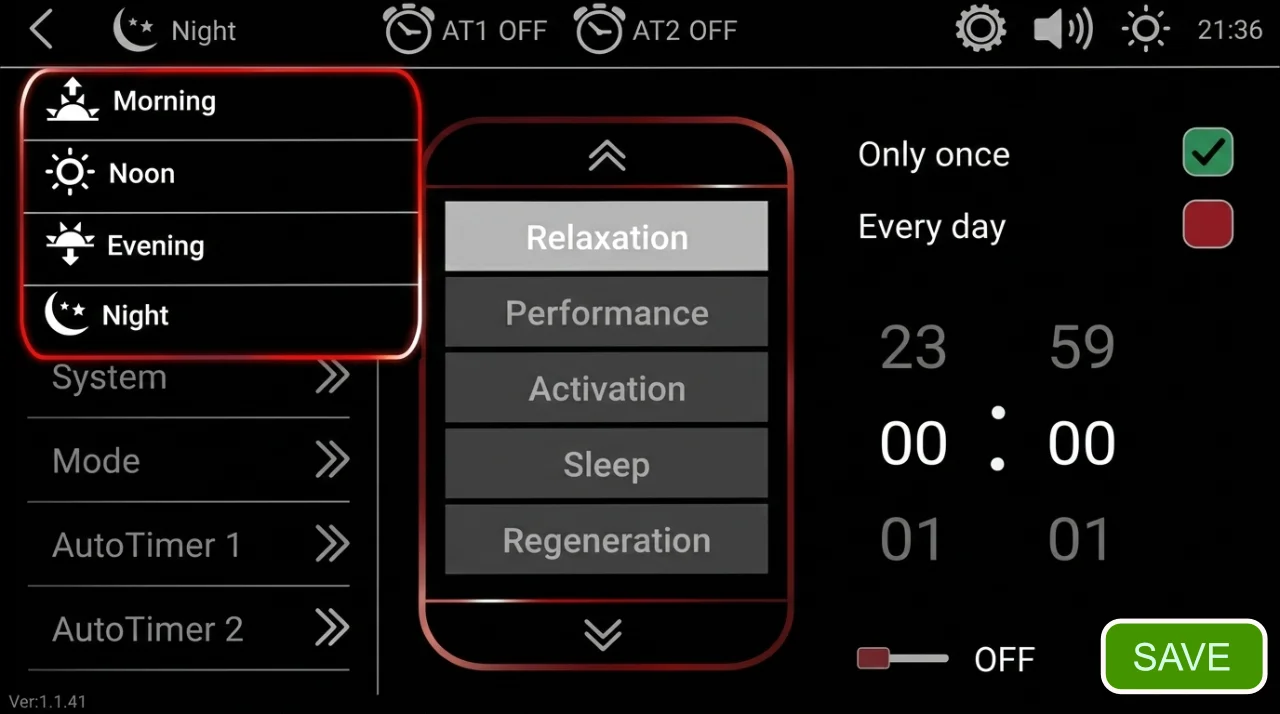

AutoTimer — Set It and Forget It
SmartPulser includes two programmable AutoTimers (AT1 and AT2) that activate your device automatically at set times each day — no manual action needed. Access both from the Settings menu on the home screen. AutoTimers setting is only available in individually mode, and works with fast start programs (S.Mat and S.Bed) only.
🌙 Overnight Use
- Schedule a sleep session before bed
- Device activates without any input
- Ideal with the S.Bed applicator
📅 Daily Routine
- Set consistent morning/evening sessions
- Build wellness into your daily schedule
- Ideal for bed-ridden or limited mobility users
Safety Information
- Do not use if you have epilepsy, are pregnant, or have electronic implants (e.g. pacemaker)
- Operate only in temperatures between +10°C and +40°C (50–104°F)
- Keep the touchscreen dry — clean with a dry microfibre cloth only
- Electromagnetic field dissipates to safe levels at approximately 1.5 metres from any applicator
- Use only original SmartPulser applicators — third-party accessories void the warranty
- Stop immediately if an applicator is damaged or not recognised by the control unit
- Stand up slowly if you feel lightheaded after a session
Warranty
All SmartPulser applicators are covered by a 3-year manufacturer warranty from the date of purchase. Keep your original proof of purchase for any warranty claim. The warranty does not cover normal wear and tear, misuse, physical damage, or unauthorised modifications.
Need the Full Manual?
Download the complete operating manual for detailed technical specifications and advanced usage guides.
Download Full Manual
